How to Build a Wicking Bed That Saves Water

A patch of basil that wilts by dinner after a hot day is frustrating. So is watering vegetables before work, only to find the soil dry again the next afternoon. Learning how to build a wicking bed gives your plants access to a steady supply of water below the soil, making productive gardening far more manageable through an Australian summer.

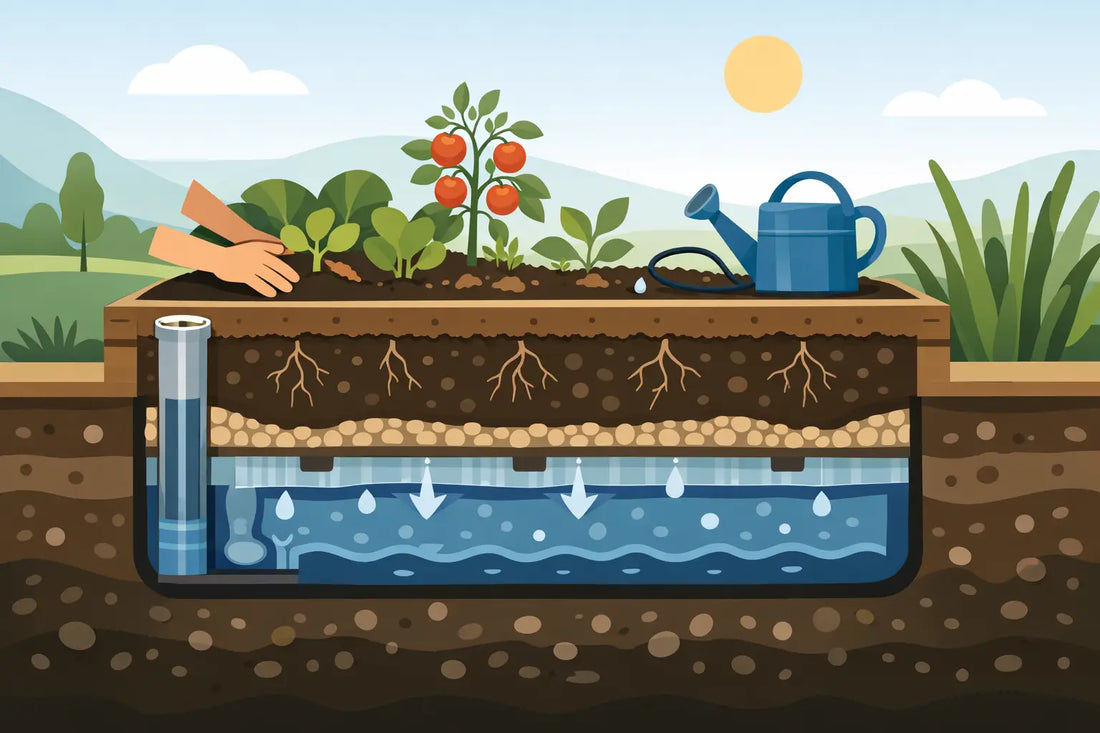

A wicking bed stores water in a reservoir at its base. Instead of pouring water over the top every day, you fill the reservoir through a pipe. Moisture then moves upwards into the growing mix as roots need it. The result is more even moisture, less evaporation and fewer dramatic swings between bone-dry and waterlogged soil.

Start with the right site and bed

Choose a position that receives at least six hours of sun if you are growing tomatoes, chillies, cucumbers or most other fruiting vegetables. Leafy greens can manage with less sun, particularly in hot areas where afternoon shade helps prevent stress. Put the bed close enough to a tap that topping up the reservoir is easy, but do not rely on convenience alone - a full wicking bed is heavy, so it needs a level, well-supported base from the beginning.

You can build a wicking bed from a purpose-made raised bed, a sturdy planter, a galvanised steel bed or a suitably strong timber frame. Whatever you choose must be deep enough for both a water reservoir and a generous root zone. Aim for a total internal depth of at least 400 mm. This allows roughly 150-200 mm for water storage and 250-300 mm of quality growing mix above it.

For balconies, courtyards and rental properties, a compact purpose-built self-watering planter is often the sensible option. It avoids permanent construction and keeps the weight and drainage requirements easier to manage. For a larger backyard vegetable patch, a raised bed gives you more room to grow and access from all sides.

What you need to build a wicking bed

The exact materials depend on your bed size and reservoir design, but most DIY builds need the following:

• A strong raised-bed frame or container, plus a flat, stable base
• A food-safe waterproof liner, with enough spare material to fold up the sides
• A reservoir material such as drainage cells or clean coarse aggregate
• Slotted agricultural pipe, a PVC fill pipe and fittings
• Geotextile fabric, quality vegetable-growing mix, mulch and an overflow fitting

Purpose-made drainage cells cost more upfront than gravel or scoria, but they create a larger water capacity for their weight and are easier to work with. Gravel is widely available and can suit a permanent ground-level bed, although it is very heavy and leaves less room for water. Avoid using unknown recycled materials, treated timber offcuts or anything that could leach contaminants into an edible garden.

Plan the reservoir before cutting anything

Measure the inside of the bed, not the outside. This tells you how much liner, drainage material and soil you will need. It is also worth deciding where the fill pipe and overflow will sit before installation. The fill pipe should be easy to reach from outside the bed, while the overflow should discharge away from walls, paths and neighbouring properties.

A reservoir that is too shallow will run out quickly in heat. One that is too deep can reduce valuable root space and make the growing mix slow to warm in cooler weather. For most home beds, 150-200 mm is a reliable middle ground.

How to build a wicking bed step by step

1. Level and prepare the base

Assemble or position the bed on firm, level ground. Check it in both directions with a spirit level. Water always finds the lowest point, so an uneven bed means one side of the reservoir may hold water while the other side stays dry.

If the bed sits on soil, clear sharp stones, roots and debris first. For a hard surface, make sure it can carry the weight. A modest 1.5 metre wicking bed filled with water, soil and plants can weigh hundreds of kilograms.

2. Install the liner carefully

Place the liner inside the bed and press it gently into the corners without stretching it tight. Leave enough excess around the top edge to secure later. A protective underlay is useful where the base is rough or timber has sharp edges.

The liner is what turns an ordinary raised bed into a water-holding system, so take your time here. Check for punctures before adding anything heavy. Once the reservoir is filled, repairing a leak is a job nobody wants.

3. Add the water distribution pipe and fill pipe

Lay slotted agricultural pipe around the base of the lined bed, with the slots facing down or sideways. Cap the far end. Connect it to an upright PVC fill pipe positioned near a corner, then secure the fill pipe so it remains vertical as the bed is filled.

The slotted pipe helps water spread through the reservoir rather than pooling only beneath the fill point. In a small bed with drainage cells, it may be less critical, but it remains a useful safeguard for an even fill.

4. Create the reservoir and overflow

Fill the bottom section with drainage cells, gravel or scoria until it reaches your planned reservoir height. Install an overflow outlet through the side wall at the top of this layer. This is essential: without an overflow, heavy rain or an enthusiastic hose can flood the soil and deprive plant roots of oxygen.

Test the system now. Pour water down the fill pipe until it reaches the overflow. Watch where the water exits and make sure it drains safely. Trim or adjust components while they are still accessible.

5. Separate the reservoir from the soil

Lay geotextile fabric over the reservoir, allowing it to come slightly up the edges. This keeps soil from washing into the water-storage layer while still allowing water to wick upwards. Overlap any joins generously so fine particles cannot find their way through.

Do not use ordinary plastic sheeting for this layer. It blocks the movement of water between the reservoir and the growing mix, which defeats the point of the system.

6. Fill with a light, rich growing mix

Add a premium vegetable-growing mix to a depth of at least 250 mm, ideally closer to 300 mm for deep-rooted crops. The mix should hold moisture but still contain compost, organic matter and coarse ingredients that allow air around roots. Dense garden soil alone often compacts in raised beds and is not the best choice.

Water the growing mix from above for the first few weeks. This helps settle it and encourages young roots to grow down towards the moist zone. Once plants are established, the reservoir can do most of the work, though occasional top watering is still useful when applying liquid fertiliser or settling in new seedlings.

Finish with 50-75 mm of mulch, keeping it a few centimetres away from stems. Straw, sugarcane mulch or fine wood mulch reduces surface evaporation and keeps the soil temperature more stable.

Plant for steady, water-wise growth

Wicking beds suit a wide range of edible plants: lettuce, silverbeet, herbs, beans, cucumbers, chillies, eggplants and tomatoes all respond well to consistent moisture. Give large plants enough room and add stakes or trellises before roots fill the bed. Crowding plants is one of the quickest ways to turn a promising bed into a disease-prone tangle.

Some plants prefer drier conditions. Mediterranean herbs such as rosemary, lavender and thyme can struggle if their roots remain consistently moist, particularly in winter. Keep them in a separate free-draining pot or use a shallower reservoir and a grittier mix.

Keep the bed working season after season

Check the reservoir level every few days when the bed is new, then learn its rhythm. Hot, windy weather, mature tomato plants and a dense crop will empty it much faster than cool weather or small seedlings. A simple bamboo cane dipped down the fill pipe can act as a quick water-level dipstick.

Feed plants regularly because vigorous growth uses nutrients as well as water. Top up compost between crops, apply a suitable organic fertiliser, and refresh mulch as it breaks down. If the soil surface stays constantly soggy, the reservoir may be overfilled or the mix may be too fine. If plants wilt despite a full reservoir, inspect the fill pipe and overflow, then consider whether roots have reached the moisture zone.

A well-built wicking bed does not remove every garden task, but it replaces daily guesswork with a dependable water reserve. Build it carefully once, plant it thoughtfully, and you will have more time to enjoy the food growing outside your door.
