How to Fit Wicking Overflow Into a Garden Bed

A wicking bed is designed to save water, not hold every drop that falls from the sky. Knowing how to fit wicking overflow correctly gives excess rainwater a safe exit, protects the soil above the reservoir and helps keep plant roots healthy through a wet Australian winter or a sudden summer downpour.

The overflow is a small fitting with a big job. It sets the maximum water level in the reservoir beneath your growing soil. Once water reaches that point, it leaves the bed rather than rising into the soil and turning a water-wise garden into a waterlogged one.

What a wicking overflow does

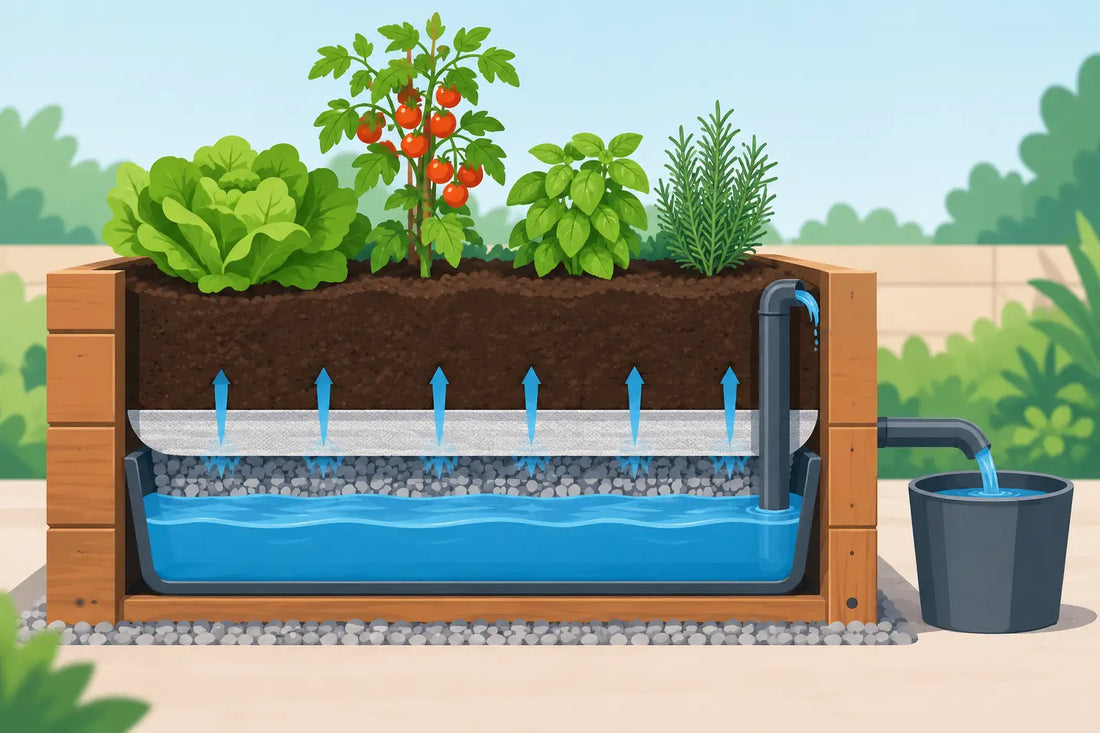

In a wicking bed or self-watering planter, water sits in a reservoir below the soil. It moves upward through the growing mix by capillary action, supplying moisture to plant roots as they need it. The overflow establishes the top line of that reservoir.

Without an overflow, rainfall or an enthusiastic top-up through the inlet pipe can overfill the base. Soil may stay too wet for too long, air spaces around roots can disappear, and nutrient-rich water may seep from places it should not. Herbs, succulents and many vegetables are especially unhappy in permanently saturated soil.

An overflow is not a drainage hole through the bottom of the bed. A conventional raised bed drains water away as soon as the soil is wet. A wicking system deliberately stores water, then releases only the excess once the reservoir is full. That difference is what makes the system both productive and water-efficient.

Plan the overflow position before building

The correct height depends on the design of your bed, planter or reservoir system. Always use the fitting position specified in the instructions for your particular product. If you are building a DIY wicking bed, the overflow should sit at the top of the water reservoir, below the soil layer and its separating fabric.

As a practical guide, install it so water cannot rise into the growing mix. In many DIY beds, this means placing the outlet near the upper edge of the reservoir layer, often around 30 to 50 mm below the soil barrier. The exact measurement matters less than the outcome: full reservoir below, well-aerated soil above.

Take a moment to consider where the water will go after it exits. Position the outlet on the side of the bed where runoff can flow safely onto a garden area, gravel strip or suitable drain. Do not send it towards a wall, timber deck, paved entertaining area or your neighbour's property. On a balcony or courtyard, direct it into a tray or drain only where your building rules allow it.

If the bed sits on uneven ground, use a spirit level before marking the hole. An overflow placed too low on one side reduces the amount of water your reservoir can store. A bed that is noticeably out of level may overflow early at one end while leaving the other end deeper than intended.

How to fit wicking overflow fittings

It is much easier to fit the overflow before you add aggregate, water cells, soil and plants. Check the size of your outlet fitting first, then choose a hole saw or drill bit that matches the manufacturer’s recommended hole size. A loose hole can leak; an undersized hole can distort the fitting or crack the container when forced.

Mark and drill carefully

Mark the outlet position on the outside wall of the bed at your planned reservoir height. Check the mark from inside as well, particularly if the bed has a frame, liner, support rib or other feature that could obstruct the fitting.

For plastic planters and liners, drill slowly with light pressure. Support flexible material from behind if possible. For a timber-framed bed with a pond liner, make the structural opening first, then cut the liner only when you are ready to install the outlet. A clean, controlled cut is much easier to seal than a rough tear.

Remove burrs or sharp edges around the hole. These can damage a liner, prevent a washer from sitting flat, or make a slow leak more likely over time.

Install the outlet and seals

Most wicking overflows use a bulkhead fitting, tank outlet or grommet with a short section of pipe. Fit every washer, gasket and nut supplied with the component, following its intended order. Usually, the sealing washer sits against the wet side of the reservoir, while the nut tightens from the outside. Product designs vary, so do not assume all fittings assemble the same way.

Hand-tighten first, ensuring the fitting sits square and the seal is not twisted. Then tighten just enough to make a firm seal. Overtightening is a common mistake, particularly with plastic containers. It can deform the wall, pinch the gasket or create a crack that only appears once the bed is full.

Attach the outlet pipe or elbow if your design includes one. A short external pipe can guide water away from the side of the bed. Where insects, frogs or debris may enter the outlet, fit a suitable screen that will not restrict water flow. Avoid stuffing the opening with fabric or fine material that can clog after a few storms.

Test before filling the bed

Before covering the reservoir with fabric and soil, pour water into the base until it reaches the overflow. Watch the fitting from both sides for several minutes. The water should leave freely through the outlet, with no drips around the seal.

This quick test is worth doing even when the fitting looks perfect. Fixing a small leak now is simple. Finding it after a bed is full of wet soil and thriving tomatoes is a much bigger job.

Keep the outlet clear of soil and mulch

Once the overflow works, build the rest of the bed as designed. Install the reservoir material or water cells, lay the geotextile or soil-separation layer in place, then add a quality wicking mix. The separation layer should prevent soil from washing into the reservoir while still allowing water to wick upward.

Keep the inside end of the outlet exposed to the reservoir rather than buried in soil. If you use a liner, make sure it remains smooth around the outlet and is not pulled tight as the bed fills. A strained liner can gradually loosen around the fitting.

On the outside, check that mulch, leaves and garden debris do not block the pipe. This matters after windy weather, when a blocked outlet may not be obvious until the next heavy rain. A quick look whenever you top up the reservoir is usually enough.

Common overflow problems and what they mean

If water sits above the intended reservoir level, start by checking for a blockage in the outlet. Roots, soil, mulch, insects and small animals can all restrict a narrow pipe. Clear it gently, then flush the outlet with water.

If water leaks around the fitting rather than through it, the washer may be misaligned, the nut may need gentle tightening, or the hole may be too large. Empty enough water to expose the fitting, dry the area and inspect it properly. Adding silicone as a first response is not always the best fix. Some sealants do not bond well to certain plastics, and they can hide an incorrectly fitted gasket rather than solve the cause.

If your soil seems constantly wet even though the overflow works, consider the growing mix as well as the reservoir level. Heavy garden soil can hold too much moisture and reduce airflow around roots. A purpose-made wicking mix, or a well-balanced mix with compost, quality soil and drainage-friendly components, gives plants a better chance of thriving.

Use overflow water thoughtfully

The water leaving your overflow is a sign that the reservoir is full, not that the system has failed. During sustained rain, it is doing exactly what it should. If practical, guide that water towards thirsty in-ground plants, a nearby fruit tree or a gravel area where it can soak in safely.

Avoid collecting overflow in a container that can become a mosquito breeding spot. If you want to reuse it, use a covered vessel and empty it promptly. In most home gardens, directing it to a suitable permeable area is the simplest option.

A correctly fitted overflow lets your wicking bed handle the changing conditions Australian gardens are known for: hot dry spells, holiday absences and rain that arrives all at once. Set it at the right height, test it before planting and keep it clear, and your garden can keep using water wisely while your plants get the steady moisture they need.
