Build a DIY Self Watering Planter That Works

A thirsty tomato on a hot Melbourne afternoon can go from healthy to stressed surprisingly quickly. A DIY self watering planter gives its roots a steadier supply of moisture from below, rather than relying on daily surface watering. It is a practical project for balconies, courtyards and backyards, especially where water-wise gardening needs to fit around work, family and changing weather.

The goal is not to keep soil permanently wet. A good wicking planter holds water in a separate reservoir, then draws only what the potting mix needs through a damp wicking zone. Get that balance right and plants can establish stronger roots, water is less likely to evaporate from the surface, and your watering routine becomes far more manageable.

How a DIY self watering planter works

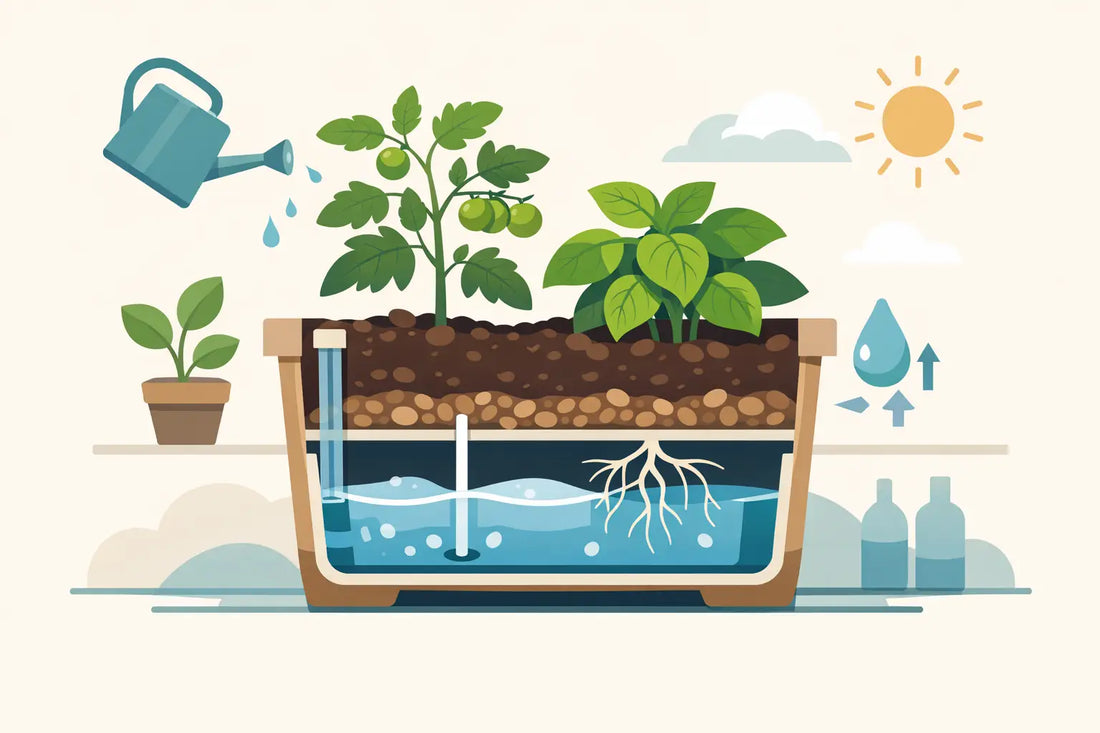

A self-watering planter has two main areas: a water reservoir at the bottom and a soil-filled growing area above it. The two are connected by a wick, or by columns of potting mix that reach into the stored water. As the upper soil begins to dry, moisture moves upward through capillary action.

This differs from sitting a regular pot in a saucer of water. In a well-built planter, the reservoir is contained below the soil, with an overflow point that stops rain or enthusiastic topping-up from drowning plant roots. Air still needs to be available in the growing mix, which is why drainage, the correct soil depth and an overflow hole all matter.

For Australian conditions, this stored-water buffer is particularly useful through hot, windy spells. It will not make a planter maintenance-free, however. Small reservoirs may need refilling every few days in summer, while larger containers can go much longer. How often depends on the plant, the weather, the pot size and how much sun the planter receives.

Choose a container before buying materials

Start with a container that suits both the plant and the location. A deep storage tub, sturdy planter box or food-safe bucket can work well, provided it is strong enough to hold wet soil and is not cracked or brittle. Dark plastic containers can heat up quickly in full sun, so consider placing them inside a lighter outer pot, adding shade to the sides, or choosing a location with morning sun and afternoon protection.

For productive plants such as tomatoes, capsicums, cucumbers and eggplants, aim for generous soil volume. Leafy greens, herbs and strawberries can manage in shallower planters, though they still benefit from enough depth for healthy roots. A container that is too small will dry quickly above the reservoir and may become top-heavy once plants mature.

Avoid using containers that previously held chemicals, paint or unknown substances. If you are growing food, use clean, food-safe materials wherever possible. Also check the finished planter will fit through a doorway or onto a balcony before filling it. Wet soil is heavy.

Materials for a simple wicking planter

There are several ways to build a reservoir, but a simple internal false floor is reliable and easy to understand. You will need:

• A waterproof container with a lid or rigid insert that can act as a false floor
• A length of PVC pipe or similar fill tube, wide enough to pour water into easily
• A small pot, perforated tube or fabric wick to create the wicking zone
• A drill or sharp tool for drainage and overflow holes
• Quality potting mix, plus mulch for the soil surface

The false floor separates the reservoir from the soil. It can be made from a fitted plastic crate, an upturned nursery tray, or a rigid lid with plenty of holes cut into it. The material must support the weight above without collapsing. The small pot or wick passes through this floor and connects the soil to the water below.

A purpose-built wicking kit can make this stage quicker, particularly if you are building several planters or want components designed to work together. Wicking Australia also offers water-wise growing options for gardeners who would rather spend the weekend planting than adapting containers.

Build your planter step by step

First, decide the height of the water reservoir. For many medium-sized containers, around 10 to 15 cm is a useful starting point. Larger planters can hold a deeper reservoir, but do not sacrifice too much growing depth for water storage.

Create an overflow hole in the side of the container at the top of the reservoir height. This is the most important hole in the whole build. It releases excess rainwater and prevents the soil layer from becoming saturated. Drill it low enough to protect the reservoir capacity, but high enough that water cannot rise into the main root zone.

Next, fit the false floor. Cut a hole for the fill tube, then position the tube so it reaches the bottom of the reservoir and stands above the finished soil level. A diagonal cut at the bottom of the tube helps water flow out freely. Keep the top open, or cover it with a loose cap to stop mosquitoes, mulch and curious fingers getting inside.

Add your wicking connection. A small net pot or nursery pot with holes, filled firmly with damp potting mix, is a simple option. It should sit through the false floor, with its lower section reaching into the reservoir and its upper section joined to the soil above. For a long rectangular planter, use two or more wicking points so moisture can reach the full length evenly.

Before adding soil, pour in a little water through the fill tube and check the overflow hole works. This quick test is much easier now than after the planter is full.

Fill the container with a good-quality premium potting mix. Do not use ordinary garden soil, which can compact in containers and reduce the air spaces roots need. Moisten the mix as you fill, especially around the wicking section, so there is a continuous pathway for water to travel upward. Leave a few centimetres at the top for mulch and watering.

Plant as you normally would, then cover the surface with straw, sugarcane mulch, shredded leaves or another suitable mulch. Mulch slows evaporation and protects soil from the harshest sun. Water the soil surface well for the first week or two while new roots settle in. Once plants are established, begin relying more on the reservoir.

Getting the moisture balance right

The most common DIY mistake is assuming more water always means better growth. Roots need oxygen as well as water, and a reservoir without an overflow can create a waterlogged planter after heavy rain. Check the overflow hole stays clear of mulch, soil and insect nests.

It is also normal for the top couple of centimetres of potting mix to feel drier than the soil below. Do not refill the reservoir simply because the surface looks dusty. Push a finger a little deeper or use a moisture probe before deciding. For seedlings and very young plants, surface watering is still helpful until their roots can access the moist lower zone.

A fill tube does not always show the reservoir level, so you can use a simple bamboo skewer as a dipstick. Lower it through the tube, then check where it comes out wet. A purpose-made water level indicator is convenient, but it is not essential for a successful planter.

What to grow in a self-watering planter

Wicking planters are well suited to moisture-loving edible crops. Tomatoes, chillies, beans, salad greens, basil, parsley, mint and strawberries often respond well to consistent moisture. They are also useful for flowering annuals that tend to wilt when conventional pots dry out.

Plants adapted to dry conditions need a different approach. Many succulents, cacti and drought-tolerant Mediterranean herbs prefer a freer-draining mix and longer dry periods. They can be grown in a self-watering container only if the reservoir is used sparingly, the mix is very open, and the container has excellent drainage. For most gardeners, a regular pot is the easier choice for these plants.

Feed plants gently through the growing season, as container mixes lose nutrients over time. A controlled-release fertiliser mixed through the potting media works well, while liquid feeds can be applied to the soil surface according to the product directions. Avoid tipping fertiliser directly into the reservoir, where it can concentrate and affect water quality.

Keep your planter working through the seasons

Every few weeks, inspect the fill tube, overflow hole and mulch layer. Refill the reservoir before plants become stressed, but adjust for rain, cool weather and reduced winter growth. In summer, check more often during heatwaves, especially if the planter is exposed to reflected heat from paving or walls.

At the end of a crop, remove old roots where practical and top up the potting mix with compost and fresh mix. If water starts draining slowly or the planter develops an unpleasant smell, empty the reservoir and flush it through the overflow. That is usually a sign that fine sediment or organic matter has collected below.

A DIY planter does not need to look perfect to be productive. Build one carefully, observe how its soil and plants respond, then use what you learn to make the next one even better. A few quiet minutes checking a reservoir can keep a balcony harvest or courtyard garden growing through the driest part of the week.
