Wicking Bed Water Reservoir Depth Made Simple
Share
A wicking bed can turn a hot weekend from a daily watering job into a quick garden check. But the result depends heavily on wicking bed water reservoir depth. Too shallow, and the stored water disappears quickly. Too deep, and you can lose valuable growing space or create a system that is slower to manage than it needs to be.
For most home vegetable beds, a reservoir around 150 to 200 mm deep is a practical, reliable starting point. It stores a worthwhile volume of water while leaving enough soil above it for strong roots, productive plants and healthy soil biology. The best depth for your garden, however, also depends on the bed’s overall height, what you are growing and how much sun it receives.
What the reservoir does in a wicking bed

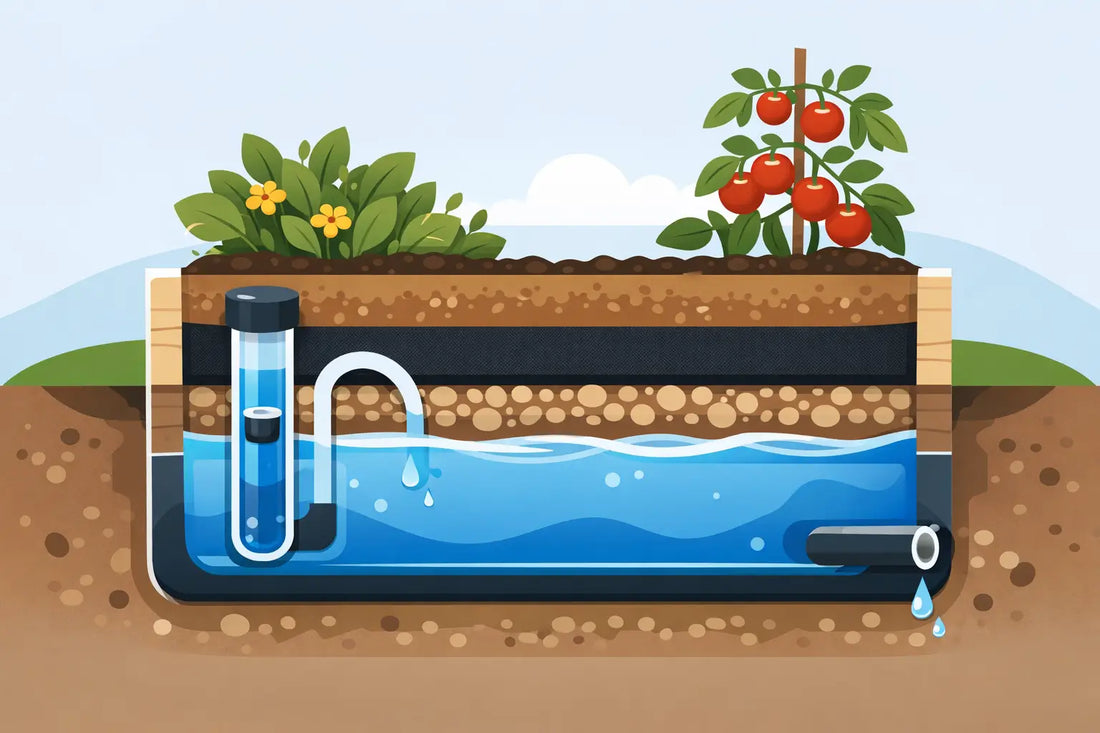

A wicking bed holds water in a lined reservoir beneath the soil. Moisture moves upwards through the wicking material and soil by capillary action, supplying plant roots from below. Rather than wetting the surface every day, you fill the reservoir through an inlet pipe and let the bed draw up what it needs.
This gives plants a more even supply of moisture, which is particularly useful during dry Australian summers. It can also reduce water lost to evaporation, since the soil surface stays comparatively dry. A well-built reservoir includes an overflow outlet, so excess rainwater can escape before the soil becomes waterlogged.
The reservoir is not there to keep roots sitting in water. Its job is to hold a reserve below the growing zone. The separation layer and depth of quality soil above it are what allow roots to access moisture without being starved of air.
The ideal wicking bed water reservoir depth
For many raised wicking beds, 150 mm is the sweet spot. It is deep enough to provide a useful store of water for herbs, leafy greens, strawberries and a wide range of vegetables, yet it does not take over the whole bed.
A 200 mm reservoir can be a sensible choice for a larger bed in full sun, particularly if you grow thirsty crops such as tomatoes, zucchini, cucumbers or pumpkins. It increases the time between top-ups, which is handy for busy households and gardeners who are away for a few days at a time.
Going much deeper than 200 to 250 mm is not automatically better. A deeper reservoir holds more water, but it also reduces the soil depth unless the entire bed is taller. In a shallow raised bed, that trade-off can limit root growth and affect plant performance. More stored water also means more weight, more liner capacity and a larger volume to flush if salts build up.
As a general guide, aim for these proportions:
- A 150 mm reservoir suits most standard wicking beds and compact planters.
- A 200 mm reservoir is useful for larger, sunny beds and higher-water-use crops.
- Keep at least 300 mm of good growing soil above the reservoir for most vegetables.
- Allow 400 mm or more of soil for deep-rooted crops such as tomatoes, corn and some perennial edibles.
Match the depth to your plants and location
Leafy greens, Asian greens, herbs and shallow-rooted crops can grow very well with around 300 mm of soil above a standard reservoir. Their roots stay close to the consistently moist lower zone, and the water store helps prevent the rapid drying that can make lettuce bitter or basil droop.
Fruiting vegetables need more room. Tomatoes, capsicums, eggplants and climbing beans perform best when their roots can spread through a generous soil profile. If your bed is only 400 to 450 mm deep in total, resist the temptation to make the reservoir extra deep. A 150 mm reservoir with more soil is usually the better balance.
Climate changes the equation too. A wicking bed on a covered Melbourne balcony may use water far more slowly than one in full afternoon sun in inland Victoria, South Australia or Western Australia. Wind, reflected heat from paving, plant size and seasonal temperatures all affect how quickly the reservoir empties.
A larger reservoir provides a buffer, but it cannot replace sensible placement and mulch. Shade-sensitive crops may still need protection from harsh summer sun, while a 50 to 75 mm layer of straw, sugarcane mulch or similar organic mulch can significantly reduce moisture loss from the soil surface.
Build the reservoir with the right layers
Depth is only one part of a successful setup. The reservoir must be able to hold and distribute water evenly, while the soil above remains open and airy.
Most DIY wicking beds use a durable waterproof liner, an inlet pipe that reaches the base of the reservoir, and an overflow outlet set at the desired maximum water level. The overflow height effectively determines your reservoir depth, so measure it carefully before filling the bed.
Within the reservoir, use a suitable water-holding medium or a purpose-designed wicking cell system. The material needs open spaces for water storage and a reliable connection to the soil above. If you use coarse aggregate, remember that it adds significant weight and may be unsuitable for balconies, decks or lightweight raised planters.
A geotextile or separation fabric is often placed between the reservoir material and soil. It helps prevent fine soil particles washing down into the water-storage area while still allowing moisture to wick upwards. Avoid using ordinary plastic sheeting as the separator, as it blocks the movement of water.
Fill the growing zone with a quality, free-draining soil blend. Garden soil that is heavy with clay can compact in a wicking bed, reducing airflow around roots. Compost, aged manures, coir, mineral amendments and a suitable vegetable-growing mix can create a more balanced structure, depending on the products available and the crops you plan to grow.
Why an overflow is non-negotiable
The overflow outlet is one of the smallest parts of the bed, but it does a major job. It prevents rain from raising the water level into the root zone. Without it, extended wet weather can leave plants yellowing, struggling or vulnerable to root disease.
Set the outlet at the top of your intended reservoir. For a 150 mm reservoir, position it approximately 150 mm above the internal base of the bed. Make sure it drains freely to a suitable area, rather than onto a neighbour’s paving or against your home.
Check the overflow after installation and again after adding soil. A blocked outlet can undo the benefits of even the best reservoir design. A simple test is to fill the bed until water runs from the overflow, then confirm that the level holds where expected.
Avoid the common depth mistakes
The most common mistake is building a generous water reservoir into a bed that is not tall enough. A bed may look substantial from the outside, but if the internal growing depth is restricted, vegetables will soon show it through stunted growth, poor yields or plants that fall over in warm weather.
Another issue is treating reservoir capacity as a reason to never inspect the bed. Wicking systems reduce watering frequency, but they are not set-and-forget. During establishment, plants use less water than a mature crop. Once tomatoes or zucchini are fruiting through a heatwave, the reservoir can empty much faster than expected.
It is also worth watching for salts over time, especially where water quality is hard or fertiliser is applied heavily. Because water moves upward, dissolved minerals can collect near the surface. Occasional top watering, rainfall and a controlled flush through the bed can help manage this. If you notice a white crust on the soil, review your fertilising routine and give the bed a thorough check.
Check water levels before plants complain
A simple dip tube or water-level indicator makes reservoir management much easier. Check it regularly in the first few weeks after planting, then learn the rhythm of your particular bed across the seasons. This is more useful than following a fixed calendar schedule.
Top up through the inlet until water begins to leave the overflow. Then stop. Flooding the soil surface is usually unnecessary and can compact bare soil or encourage weed seeds. For newly planted seedlings, water from above for the first week or two as well, until their roots grow down into the consistently moist zone.
Purpose-built systems from Wicking Australia can take much of the guesswork out of reservoir sizing and setup, while a carefully planned DIY bed can deliver excellent results too. In either case, give your plants enough soil first, then choose a reservoir depth that suits the heat, crop load and watering routine of your home.
A well-sized reservoir will not make every garden problem disappear, but it gives your plants a steadier foundation. Set it up thoughtfully, add mulch, keep an eye on the water level through the first summer, and let your garden become one less thing demanding attention every evening.
