How to Choose the Right Wicking Bed Liner

A wicking bed liner does more than stop water leaking onto the ground. It creates the sealed reservoir that makes a wicking bed work: a store of water below the soil that plant roots can draw from as they need it. Choose the wrong material or install it poorly, and even a beautifully built garden bed can lose water, stain a patio or leave roots sitting in soggy soil.

For Australian gardeners, that reservoir is especially valuable. It gives vegies and flowering plants a steadier supply of moisture through hot afternoons, missed watering days and unpredictable dry spells. The liner is the quiet workhorse underneath it all, so it is worth selecting and fitting with care.

What a wicking bed liner actually does

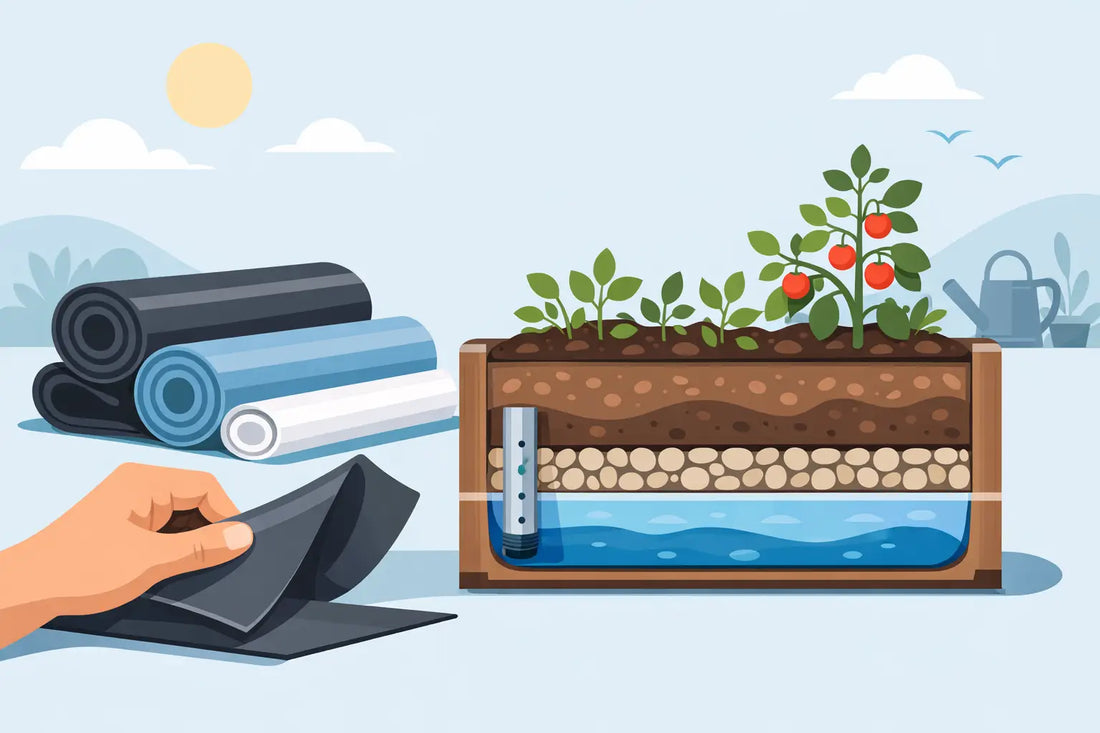

A wicking bed is a contained growing system with a water reservoir at its base. The reservoir is separated from the soil by a drainage layer and often a geotextile fabric, while a pipe allows water to be added directly to the bottom. Moisture then moves upwards through the soil by capillary action, or wicking.

The liner holds that reservoir in place. In a raised timber bed, it protects the timber from constant moisture while preventing stored water from escaping. In a metal, masonry or repurposed container bed, it can protect surrounding surfaces and make an otherwise unsuitable vessel watertight.

It is not the same as the fabric separator used between the drainage layer and soil. A separator allows water and air to move while keeping soil particles out of the reservoir. A liner must be waterproof. Using landscape fabric alone as a liner is one of the quickest ways to end up with a bed that drains when it should be storing water.

Choosing a wicking bed liner for Australian conditions

The best choice depends on the size and shape of your bed, where it sits and how long you want it to last. A compact courtyard planter has different demands from a large backyard vegetable bed, but a few qualities matter in every installation.

First, choose a purpose-made waterproof membrane that is suitable for garden and pond use. Quality pond liners are a popular option because they are designed to hold water over the long term. EPDM rubber liners are flexible, durable and handle folds well, making them particularly useful for timber beds with corners and uneven internal surfaces. Heavy-duty polyethylene liners can also work well when they are thick enough and protected from punctures.

Avoid relying on thin builders plastic. It can be tempting for a budget DIY project, but it is more likely to tear during installation or deteriorate over time. Replacing a failed liner means removing soil, drainage material and plants, so the small saving rarely feels worthwhile later.

If you are growing edible crops, use a liner sold for ponds, potable-water applications or food-growing situations, and follow the manufacturer’s guidance. The aim is to create a garden that is productive as well as practical.

Thickness, flexibility and durability

A tougher liner is generally more resistant to roots, sharp gravel and accidental damage from tools. However, thicker is not automatically better if the material is so stiff that it will not sit neatly into your bed. A flexible liner is easier to fold into corners without tension, which reduces the chance of splits forming along a stressed crease.

Think about what sits underneath the bed too. A wicking bed placed on compacted soil has a different risk profile from one sitting on concrete, pavers or a rough timber deck. On hard or abrasive surfaces, an underlay can provide welcome protection. It is a simple extra layer that may add years to the life of the liner.

Sun exposure also matters. Most of the liner will be covered, but exposed edges can degrade under strong Australian UV. Keep edges tucked beneath a capping board, mulch layer or bed rim where possible.

Size the liner generously

Measure the internal length, width and depth of the bed, then allow extra material for each wall, folds and securing at the top. It is much easier to trim excess after fitting than to stretch a liner that falls short by a few centimetres.

For rectangular beds, add twice the internal depth to both the length and width, then include a little more for a comfortable overhang. For example, a bed measuring 2 metres by 1 metre and 40 centimetres deep needs more than a 2 metre by 1 metre sheet. Allowing for the base and both side walls brings the minimum closer to 2.8 metres by 1.8 metres, before adding extra working room.

Do not pull the material drum-tight. Leave enough slack for settled soil, water weight and gentle movement in the structure. A liner that can relax into the corners is less likely to be damaged than one stretched across sharp edges.

Installing a wicking bed liner without leaks

Start with a clean bed. Remove screws, splinters, sharp metal edges, stones and anything else that could rub through the membrane. If the bed has particularly rough surfaces, add a protective underlay before the liner goes in.

Lay the liner into the bed from the centre outwards, pressing it carefully along the base and up each side. Form soft folds at the corners rather than cutting wherever possible. Every cut creates a potential leak point, and most rectangular beds can be lined without making one.

Once it is positioned, secure the upper edge near the rim using a method suited to the bed material. In timber beds, battens or capping boards can hold it neatly in place. Take care not to puncture the liner lower down where water will sit. The top edge should remain above the highest expected water level.

Before adding gravel or soil, fill the lined bed with a small amount of water and inspect it. Check the corners, seams, underside of the bed and nearby ground over several hours. This is the easiest time to find a problem. If water is escaping, fix it now rather than after the bed is planted with tomatoes, herbs and leafy greens.

Do not forget the overflow

A wicking bed needs an overflow outlet. This outlet sets the maximum water level in the reservoir, stopping water from rising into the soil zone after heavy rain or enthusiastic filling. Without it, roots can lose access to the air they need and plants may struggle despite having plenty of water.

Fit the overflow at the planned height, usually near the top of the reservoir layer. Any penetration through the liner needs to be sealed properly with a suitable bulkhead fitting or waterproof connection. A hole cut loosely around a pipe is not enough. This is one area where careful measuring pays off.

Position the outlet so excess water drains somewhere sensible, rather than across a deck, beside a wall or into an area that becomes muddy. If your bed is on a balcony or rental patio, check drainage arrangements before filling it. Water-wise gardening should make outdoor spaces easier to enjoy, not create a neighbourly headache below.

Protecting the liner once the bed is built

The drainage layer above the liner is another line of defence. Smooth, washed aggregate is less likely to create pressure points than sharp rubble. Arrange your inlet pipe before adding the drainage material, and avoid dropping heavy stones from height.

Place a geotextile or suitable separator over the reservoir before adding soil. This prevents fine soil from washing down and clogging the water storage area. It also helps preserve the air spaces that allow the reservoir to function properly.

When planting, remember that a wicking bed is still a garden bed. Keep the soil level below the rim, add mulch to reduce evaporation and check the fill pipe regularly while you learn how quickly your plants use water. In very hot weather, thirsty crops such as cucumbers, zucchini and fruiting tomatoes may use reservoir water faster than expected. During cool or wet periods, you may barely need to top it up.

Common wicking bed liner mistakes to avoid

Most liner failures come from a handful of avoidable shortcuts. Thin plastic, unprotected sharp edges and rushed cuts are common culprits. So are overflow holes that are not sealed and liners installed too tightly to cope with the weight of a full bed.

Another mistake is assuming a liner alone guarantees healthy roots. The reservoir depth, overflow height, drainage material, separator and soil mix all work together. If the water level sits too high or the soil is too dense, plants can still become waterlogged. A well-built wicking system balances steady moisture with oxygen in the root zone.

A good liner is not the flashy part of a garden project, but it is the part that lets the system keep doing its job season after season. Choose durable materials, take your time around corners and fittings, and you will have a water-wise bed ready to support healthier growing with less daily watering.
