How to Install a Planter Overflow Correctly

A full reservoir is what makes a self-watering planter so useful, but it needs a controlled place for excess rainwater to leave. When you install a planter overflow at the right height, you protect the air space around plant roots while keeping a reliable water reserve below. It is a small fitting with a big job, especially through a wet Victorian winter or a sudden summer downpour.

For wicking planters, the overflow is not simply a drainage hole. Its position sets the maximum water level in the reservoir. Get that level right and your plants receive steady moisture from below without their roots sitting in water.

What a planter overflow actually does

A wicking planter holds water in a reservoir beneath the growing mix. Moisture moves upwards through a wicking medium or soil column, allowing plants to take up what they need over time. This reduces frequent top watering and helps make every litre count.

An overflow outlet prevents the reservoir from rising beyond its intended level after rain or accidental overfilling. Once water reaches the outlet, it drains away rather than flooding the soil above. That remaining air gap is vital. Most edible plants, herbs and ornamentals need oxygen around their roots as well as moisture.

A conventional pot usually has drainage holes at its base, so excess water leaves the whole container. A self-watering planter is different: it is designed to retain water deliberately. Adding low drainage holes can empty the reservoir and defeat the purpose of the system. An overflow should sit at the planned top level of the water reservoir, not at the bottom of the planter.

Plan the overflow height before drilling

The correct height depends on the planter design. Purpose-built self-watering planters and wicking bed kits commonly have a specified overflow position. Follow that measurement first, as it accounts for the reservoir, false floor or drainage cell, wicking points and growing depth.

For a DIY planter, work from the bottom up. Identify the height of the reservoir and allow for the structure separating water from soil. The overflow should generally sit just below the top of that reservoir, so there is room for water storage but no risk of water reaching the main soil layer.

Do not guess based on the outside appearance of the planter. A deep decorative pot may have a shallow reservoir, while a raised wicking bed can hold a much larger volume of water. Measure inside the container, mark the proposed outlet level, then check it against your layout before making a hole.

It also helps to consider where the water will go. An outlet facing a paved balcony may need a short hose attachment or a collection tray. On a garden bed, make sure it drains onto soil that can absorb the flow without creating a muddy patch near a wall, path or neighbour's boundary.

What you will need

The fitting needs to suit the material of your planter and create a watertight seal. A bulkhead fitting, tank outlet or suitable threaded fitting with rubber washers is usually more dependable than pushing a piece of pipe through a rough hole. You will also need a drill, the correctly sized hole saw or drill bit, a marker, measuring tape and a file or sandpaper to smooth sharp edges.

For metal planters, use a bit suited to metal and take your time. For plastic, drill slowly to avoid cracking. Timber planters with an internal liner need extra care: the overflow must pass through the liner without tearing it, and the timber should be protected from repeated wetting.

If insects, mulch or fine debris could enter the outlet, fit a small screen over the inside opening. Keep it removable, though. An overflow that cannot be inspected or cleaned can become blocked just when heavy rain arrives.

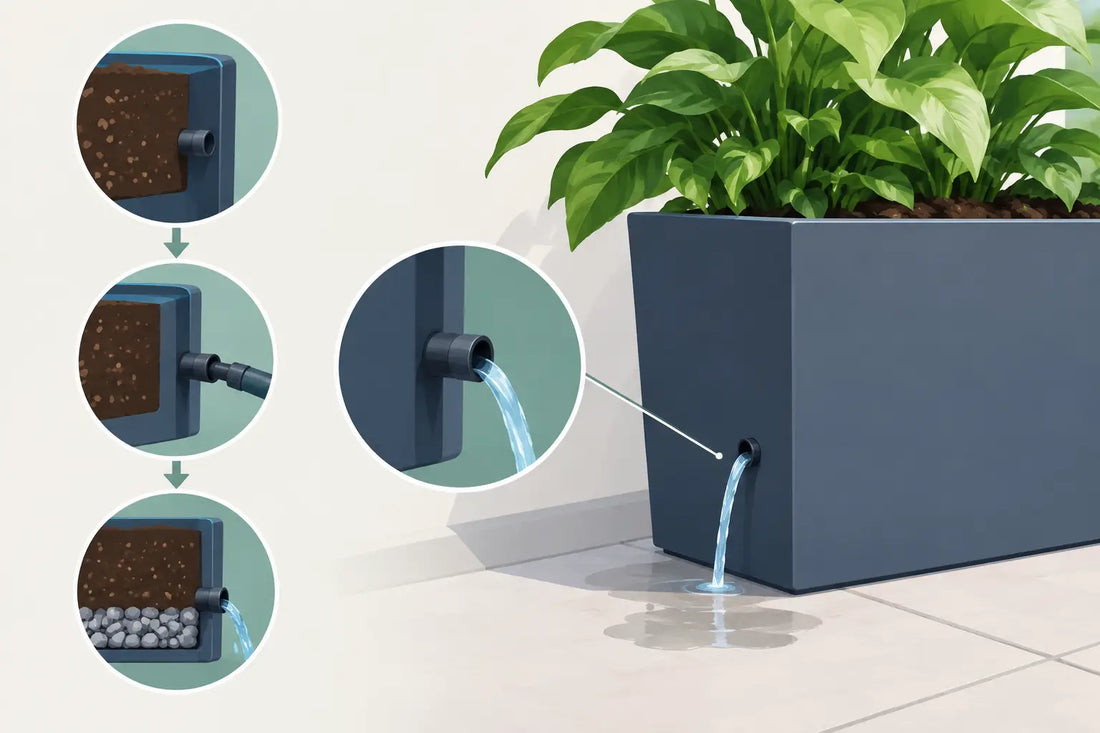

How to install a planter overflow

1. Empty and mark the container

It is easiest to fit the outlet before filling the planter. If the planter is already in use, empty enough of the reservoir and soil to safely access the wall from both sides. Mark the outlet height using your design measurements, then step back and confirm the outlet will be clear of supports, legs, handles and nearby structures.

Check that the planter is sitting level before marking. A planter that slopes to one side may drain too early or hold water above the intended level at the opposite end. Use packers or adjust the site first if needed.

2. Drill a clean opening

Start with a small pilot hole where appropriate, then enlarge it with the fitting-sized bit or hole saw. Keep the drill square to the planter wall so the washers will sit flat. Avoid forcing the tool, particularly with thin plastic or brittle recycled containers.

Remove burrs from both sides of the opening. Even a small raised edge can stop a washer sealing properly and cause a slow leak that is hard to spot once the planter is full.

3. Fit the outlet and seal it properly

Place the rubber washer where the fitting manufacturer recommends, usually on the inside face where water pressure is greatest. Insert the fitting, add the outer washer and nut, then tighten by hand until firm. Over-tightening can distort plastic walls, crush a washer or crack the planter.

If the fitting instructions call for sealant, use one safe for the planter material and allow it to cure fully. Do not rely on sealant alone where a proper gasketed fitting is available. A mechanical seal is easier to maintain and less likely to fail after hot weather causes the planter to expand and contract.

4. Direct the discharge

Leave the outlet open if it can drain safely onto surrounding soil. If you need to guide water away, attach a short length of compatible hose or pipe with a gentle downward fall. Avoid long runs that sag and hold water, as these can clog with sediment or algae.

Never cap an overflow outlet permanently. The planter needs a clear escape path for rainwater. If you are concerned about drips on a balcony, direct the outlet to a suitable drain point or place a stable tray below it, then empty the tray after heavy rain.

5. Test before adding plants

Fill the reservoir slowly with water and watch the fitting from inside and outside. Water should remain contained until it reaches the overflow level, then exit freely. Check for drips around the seal and confirm that the outlet does not back up.

Once the system passes the test, complete the wicking layer and add quality growing mix. Water the mix from above when first planting to settle it around the roots. After establishment, refill through the reservoir as your planter design requires.

Common mistakes that cause soggy plants

The most common mistake is placing the overflow too high. This can allow water into the growing mix, leaving roots deprived of oxygen. Symptoms may include yellowing leaves, slow growth and a sour smell from constantly wet soil.

Putting the outlet too low creates the opposite problem. Your planter will drain before the reservoir has stored enough water, so it will need filling more often and lose one of the main benefits of wicking. In very hot, windy Australian conditions, that smaller reserve can make a noticeable difference.

Blocked outlets are another issue. Check the opening after storms, falling leaves or mulch top-ups. A quick visual inspection is usually enough, but flush the outlet gently if sediment has built up. Do not poke aggressively with a sharp tool that could damage a screen or fitting.

Finally, remember that an overflow is not a cure for poor potting mix. Use an open, good-quality mix suited to containers, rather than dense garden soil. The reservoir manages water availability; the mix still needs enough air space for healthy roots.

Adjusting for balconies, patios and wet climates

Renters and balcony gardeners may need to be more deliberate about overflow water. Check body corporate rules where relevant, and avoid draining onto a lower balcony, shared walkway or footpath. A short hose leading to an approved drain point may be the tidiest option, provided it does not create a trip hazard.

In high-rainfall periods, check reservoirs more often rather than assuming they need a refill. The overflow protects the planter from overfilling, but rain may already have topped it up. In dry spells, inspect the reservoir through the fill tube or access point and refill before plants show stress.

Purpose-built systems make this process simpler because the reservoir depth, overflow position and filling method are designed to work together. Wicking Australia can help gardeners choose water-wise components that suit anything from a compact herb planter to a productive backyard bed.

A well-positioned overflow lets you use rainwater without handing control of your planter over to the weather. Take the extra few minutes to measure, seal and test it, then you can spend more time enjoying healthy growth and less time rescuing waterlogged plants.
